当前位置：首页 >> 产品中心 >> LED泛光灯

LED泛光灯

< >

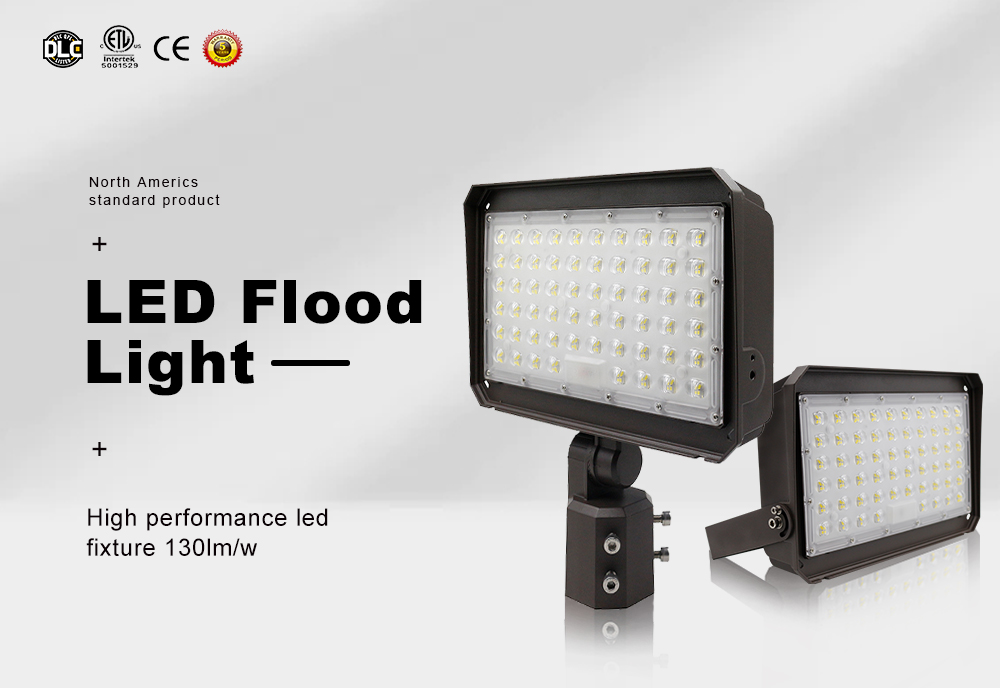

FL35 Series LED Flood Light

15W-200W
High performance LED fixture 130Lm/W
2 multiple mounting options
DLC ETL CE listed and 5 years warranty

Specification

Product	LED Flood Light	LED Flood Light	LED Flood Light	LED Flood Light	LED Flood Light	LED Flood Light	LED Flood Light
Brand Name	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight
Model No	ML-FL35-15W	ML-FL35-26W	ML-FL35-50W	ML-FL35-80W	ML-FL35-100W	ML-FL35-150W	ML-FL35-200W
Wattage	15W	26W	50W	80W	100W	150W	200W
Input Voltage	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz
Lumen Efficiency	130LM/W	130LM/W	130LM/W	130LM/W	130LM/W	130LM/W	130LM/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
Power Efficiency	>85%	>85%	>85%	>85%	>85%	>85%	>85%
Lumen Output(+/-5%)	1950LM	3380LM	6500LM	10400LM	13000LM	19500LM	26000LM
CRI	>70	>70	>70	>70	>70	>70	>70
CCT	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K
Rating	IP65 IK07	IP65 IK07	IP65 IK07	IP65 IK07	IP65 IK07	IP65 IK07	IP65 IK07
Driver	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight
Lighting Source	Lumileds	Lumileds	Lumileds	Lumileds	Lumileds	Lumileds	Lumileds
Working Temperature	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C
Lamp Shell Color	Brown	Brown	Brown	Brown	Brown	Brown	Brown
Beam Angle	100°	100°	100°	100°	100°	100°	100°
Working Lifetime	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs
Certification	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS
Warranty	5 years	5 years	5 years	5 years	5 years	5 years	5 years

Packing

Model No	Wattage	PIECE	Carton Size(cm)	GW(kg)
ML-FL35-15W	15W	20pcs/CTN	35.528.530.5	11.0(D) 11.5(E)
ML-FL35-26W	26W	20pcs/CTN	35.528.530.5	11.0(D) 11.5(E)
ML-FL35-50W	50W	12pcs/CTN	4238.525	14.5(D) 15.0(E)
ML-FL35-80W	80W	10pcs/CTN	45.52644.5	18.0(D) 18.5(E)
ML-FL35-100W	100W	10pcs/CTN	45.52644.5	18.0(D) 18.5(E)
ML-FL35-150W	150W	4pcs/CTN	633836	17.5(A) 18.7(C) 17.9(E)
ML-FL35-200W	200W	4pcs/CTN	633836	17.5(A) 19.1(C) 19.5(E)
