| Product | LED Wall Pack Light | LED Wall Pack Light | LED Wall Pack Light | LED Wall Pack Light |
| Brand Name | Minglight | Minglight | Minglight | Minglight |
| Model No | ML-WPA-12W | ML-WPA-13W | ML-WPA-18W | ML-WPA-26W |
| Wattage | 12W | 13W | 18W | 26W |
| Input Voltage | 120-277Vac | 120-277Vac | 120-277Vac | 120-277Vac |
| Lumen Efficiency | 120LM/W | 120LM/W | 120LM/W | 120LM/W |
| Power Factor (PF) | >0.95 | >0.95 | >0.95 | >0.95 |
| Power Efficiency | >90% | >90% | >90% | >90% |
| Lumen Output(+/-5%) | 1440LM | 1560LM | 2160LM | 3120LM |
| CRI | >70 | >70 | >70 | >70 |
| CCT | 3000K 4000K 5000K 6000K |
3000K 4000K 5000K 6000K |
3000K 4000K 5000K 6000K |
3000K 4000K 5000K 6000K |
| Rating | IP65 | IP65 | IP65 | IP65 |
| Driver | Minglight | Minglight | Minglight | Minglight |

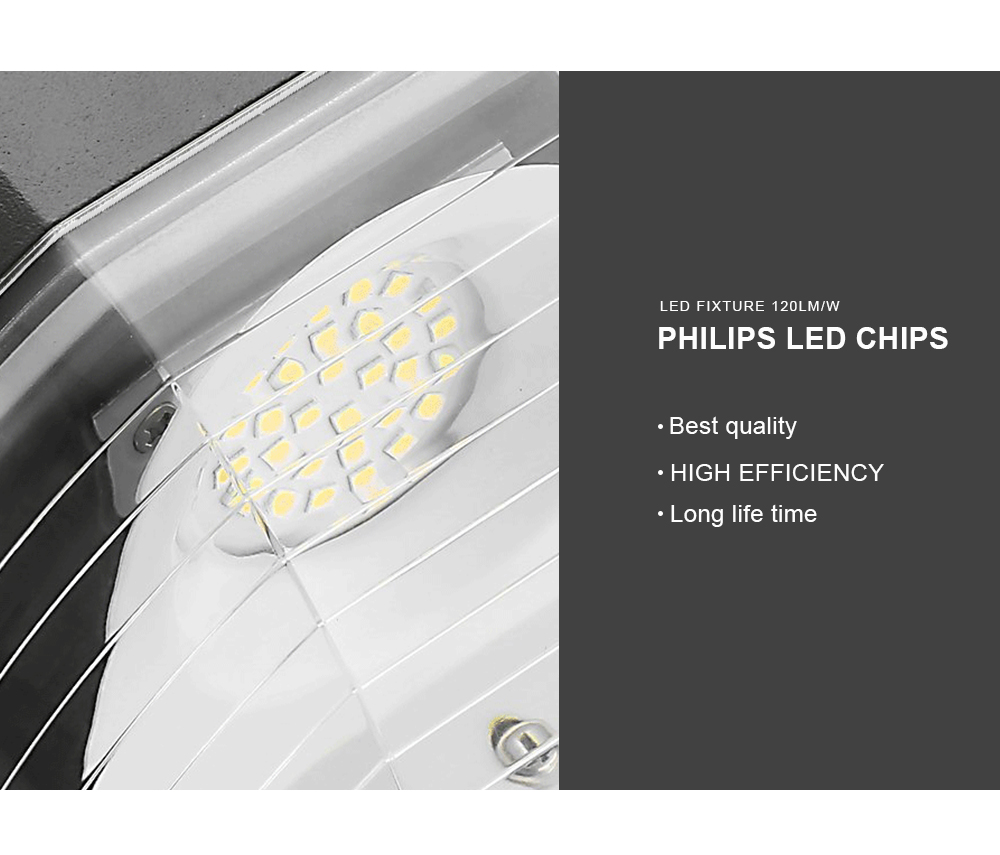

| Lighting Source | Lumileds | Lumileds | Lumileds | Lumileds |
| Working Temperature | (-)25°C-(+)55 °C | (-)25°C-(+)55 °C | (-)25°C-(+)55 °C | (-)25°C-(+)55 °C |
| Lamp Shell Color | Brown | Brown | Brown | Brown |
| Beam Angle | 100° | 100° | 100° | 100° |
| Working Lifetime | 50000hrs | 50000hrs | 50000hrs | 50000hrs |
| Certification | DLC ETL | DLC ETL FCC IC | DLC ETL FCC IC | DLC ETL |
| Warranty | 5 years | 5 years | 5 years | 5 years |
Packing
| Model No | Wattage | PIECE | Carton Size(cm) | GW(kg) |
| ML-WPA-12W | 12W | 20pcs/CTN | 75*30.5*23 | 11 |
| ML-WPA-13W | 13W | 20pcs/CTN | 75*30.5*23 | 11 |
| ML-WPA-18W | 18W | 10pcs/CTN | 59*34.5*26.5 | 12.3 |
| ML-WPA-26W | 26W | 10pcs/CTN | 59*34.5*26.5 | 12.5 |
