LED Wall Pack Light

< >

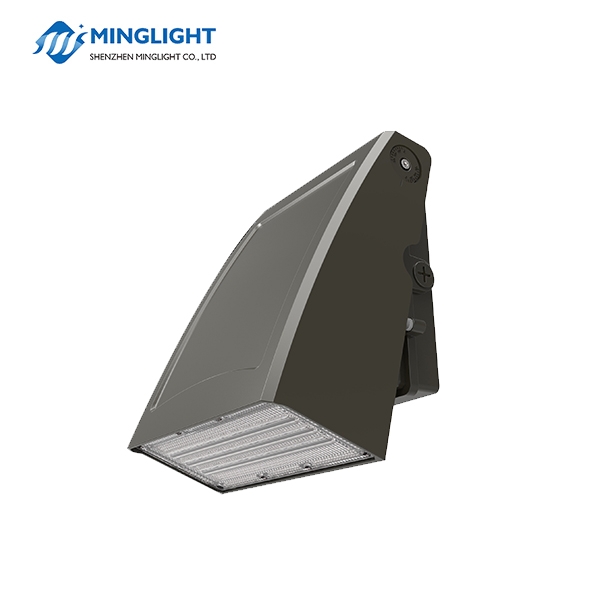

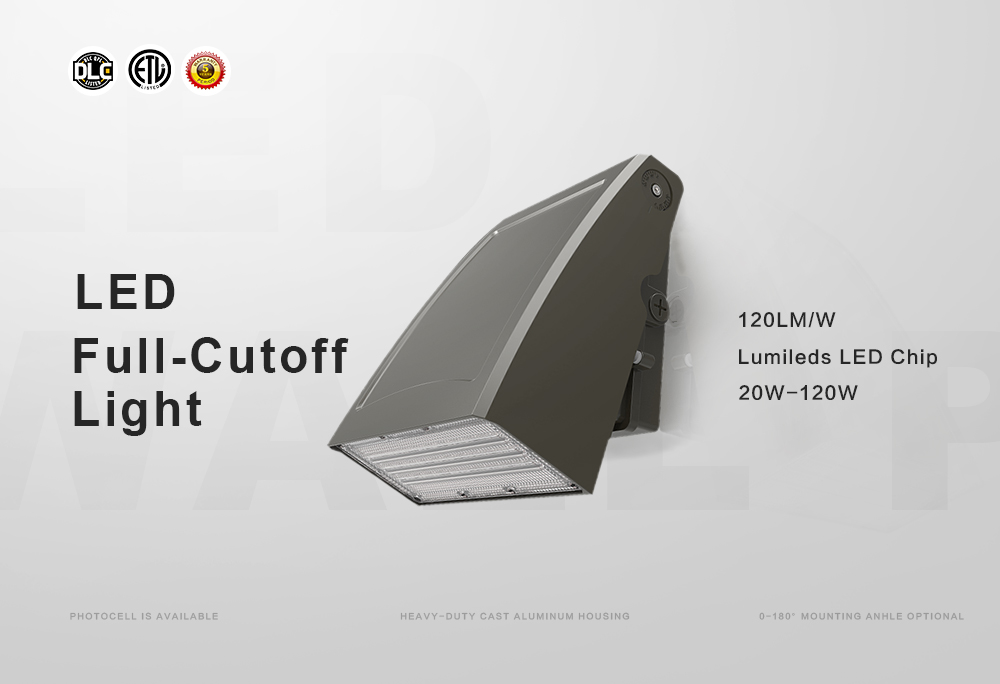

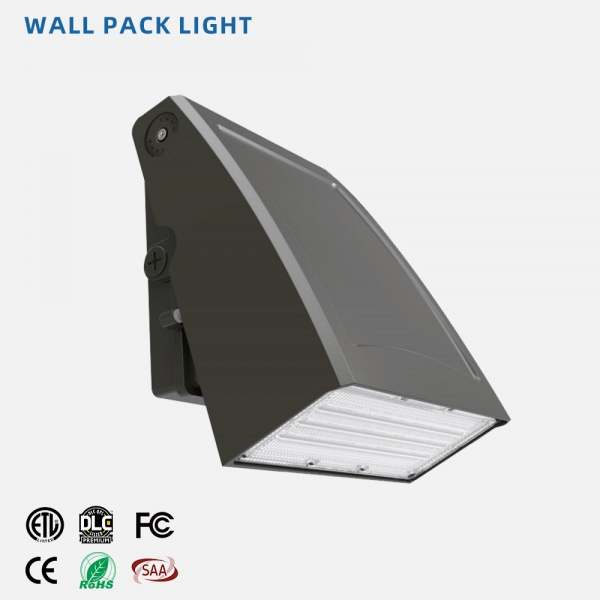

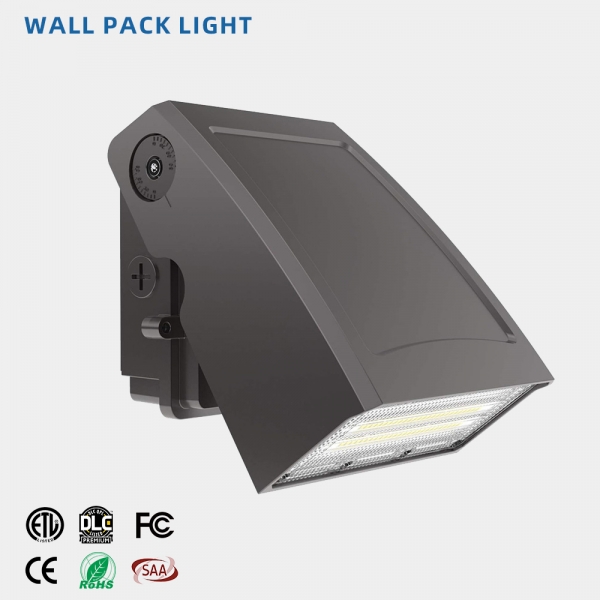

WPD2 Series LED Wall Pack Light

20W-120W
High performance LED fixture 120Lm/W

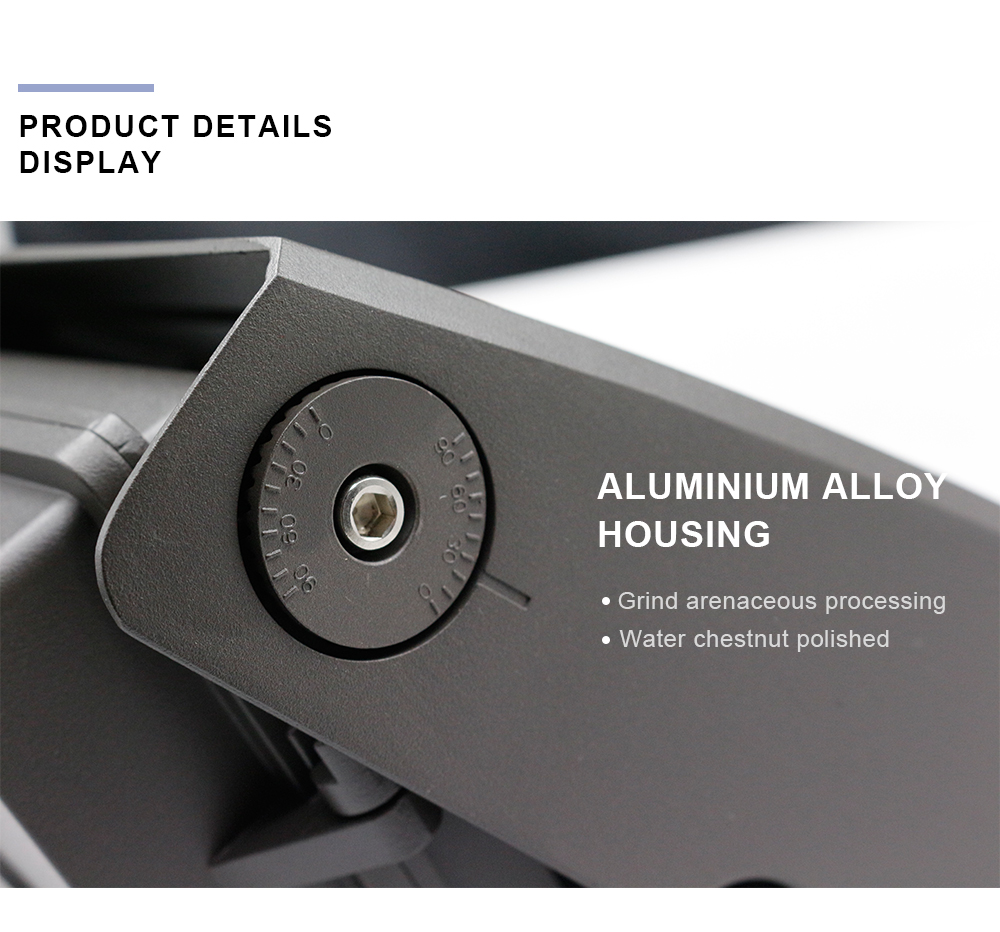

Heavy-duty cast aluminum housing
Stable and durable,easy installment and maintenance

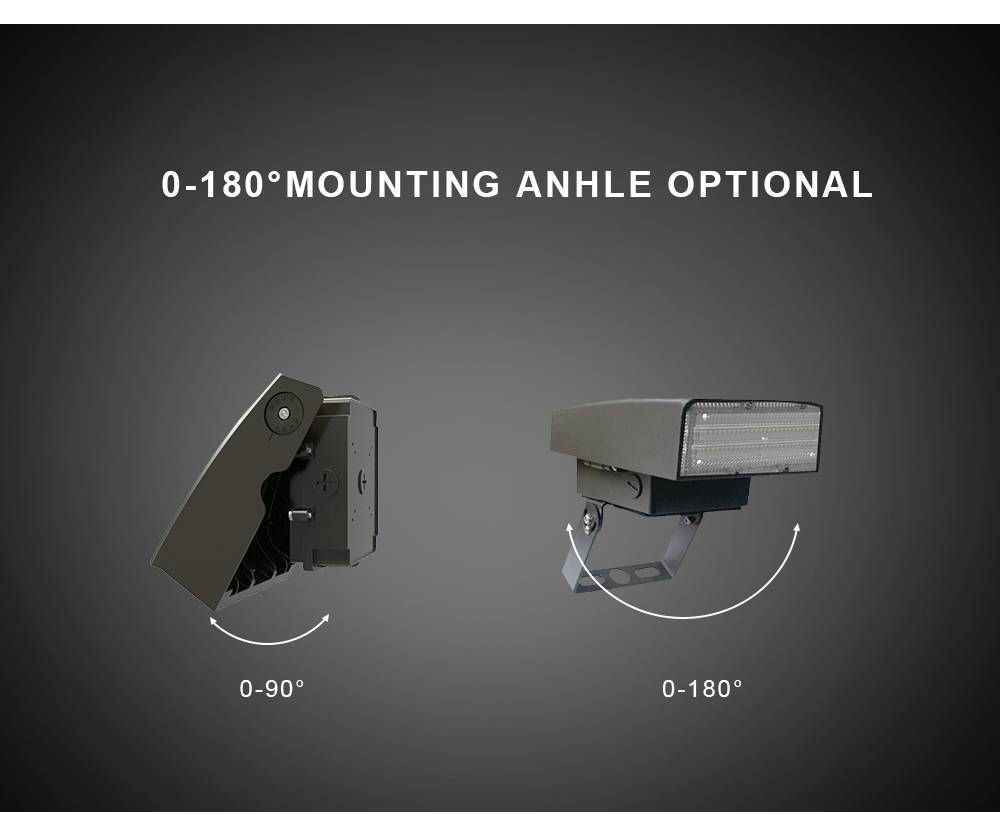

0-90° or 0-180° mountin angle optional
Replcing 75W to 250W metal halide

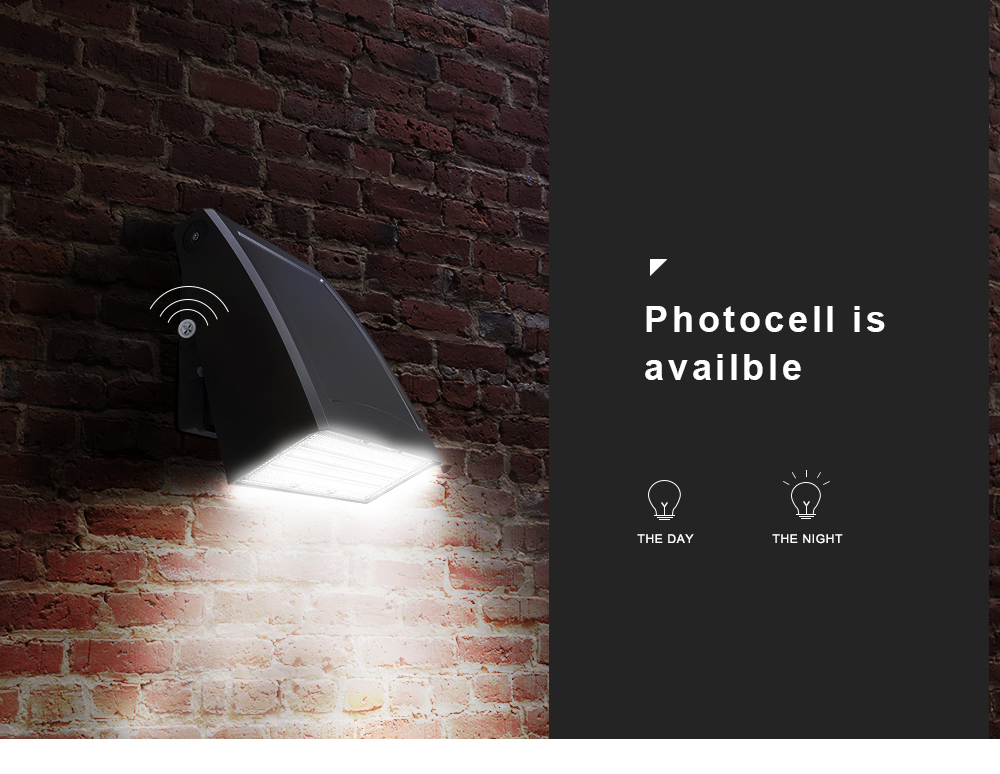

Photocell is available
DLC ETL Philips LED and5 years warranty

Specification

Product	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light
Brand Name	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight
Model No	ML-WPD2-20W	ML-WPD2-40W	ML-WPD2-60W	ML-WPD2-80W	ML-WPD2-100W	ML-WPD2-120W
Wattage	20W	40W	60W	80W	100W	120W
Input Voltage	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz
Lumen Efficiency	120LM/W	120LM/W	120LM/W	120LM/W	120LM/W	120LM/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
Power Efficiency	>85%	>85%	>85%	>85%	>85%	>85%
Lumen Output(+/-5%)	2400LM	4800LM	7200LM	9600LM	12000LM	14400LM
CRI	>70	>70	>70	>70	>70	>70
CCT	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K
Rating	IP65	IP65	IP65	IP65	IP65	IP65
Driver	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight

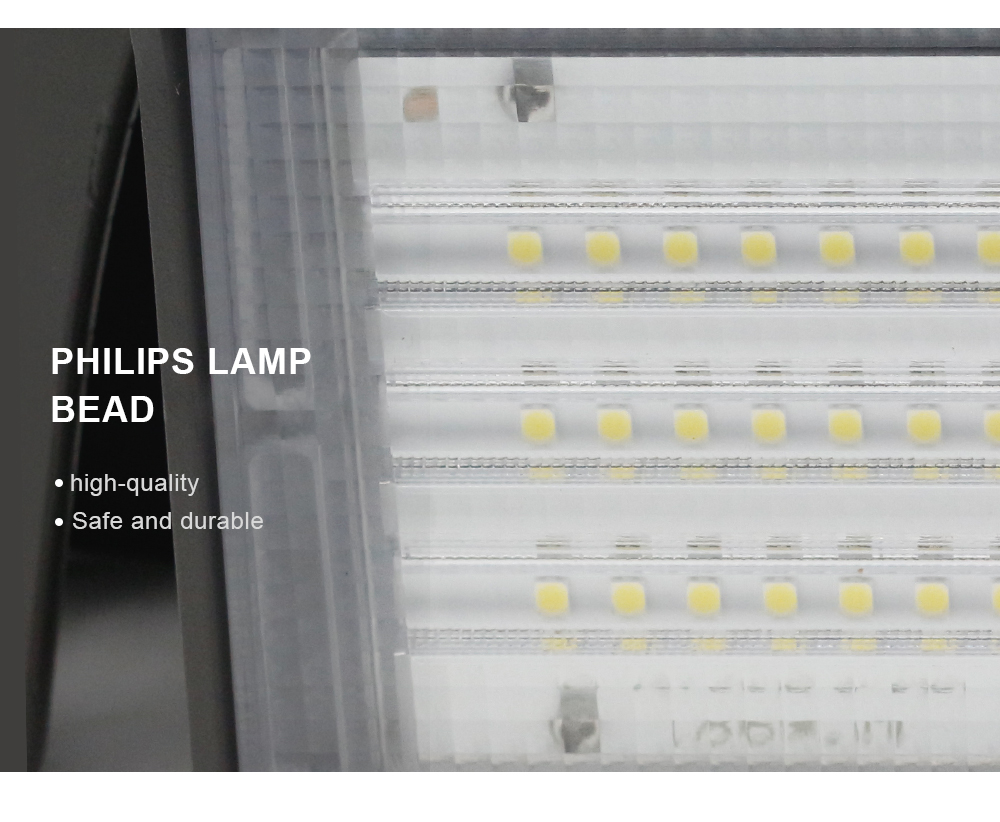

Lighting Source	Lumileds	Lumileds	Lumileds	Lumileds	Lumileds	Lumileds
Working Temperature	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C
Lamp Shell Color	Brown	Brown	Brown	Brown	Brown	Brown
Beam Angle	100°	100°	100°	100°	100°	100°
Working Lifetime	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs
Certification	DLC ETL	DLC ETL	DLC ETL	DLC ETL	DLC ETL	DLC ETL
Warranty	5 years	5 years	5 years	5 years	5 years	5 years

Packing

Model No	Wattage	PIECE	Carton Size(cm)	GW(kg)
ML-WPD2-20W	20W	6pcs/CTN	4239.526	10.0
ML-WPD2-40W	40W	6pcs/CTN	4239.526	10.0
ML-WPD2-60W	60W	6pcs/CTN	49.53555	15.0
ML-WPD2-80W	80W	6pcs/CTN	49.53555	15.0
ML-WPD2-100W	100W	4pcs/CTN	4038.563	15.0
ML-WPD2-120W	120W	4pcs/CTN	4038.563	15.0
