LED Wall Pack Light

< >

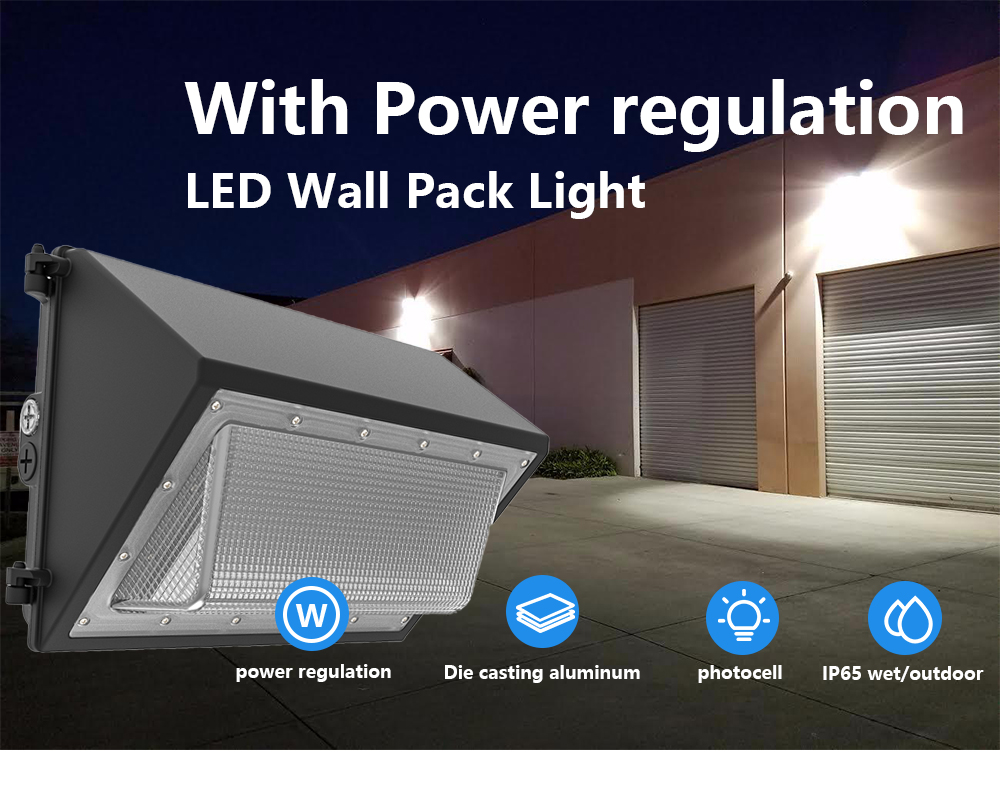

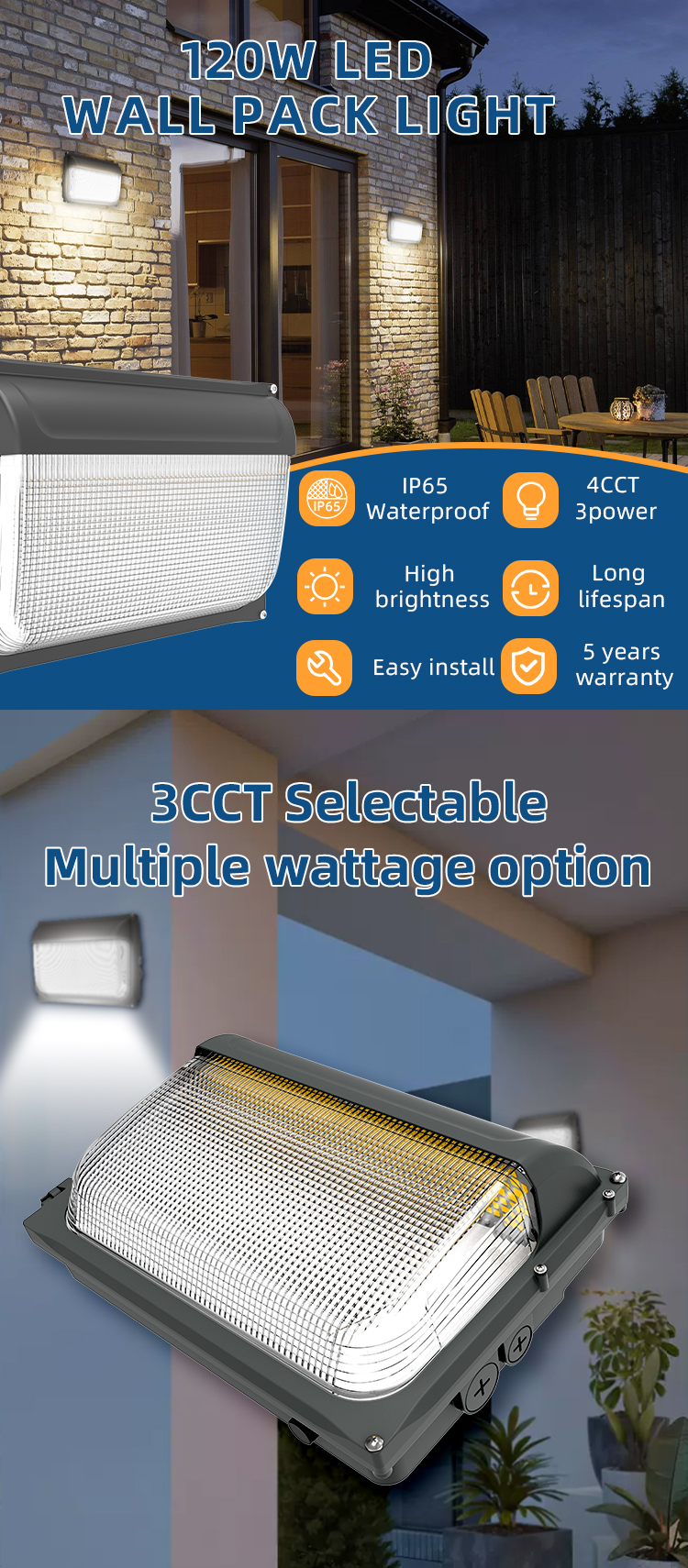

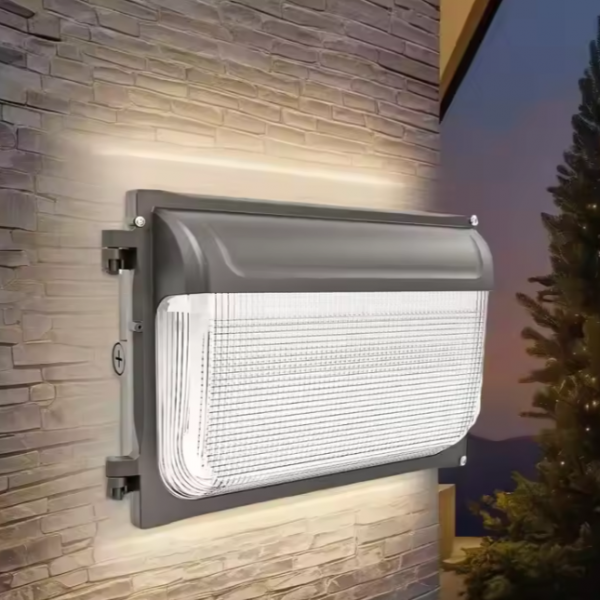

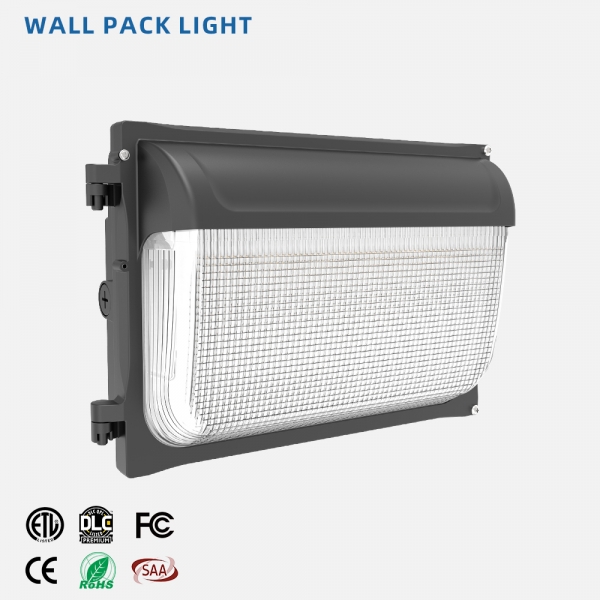

WPB Series LED Wall Pack Light

42W-120W
High performance LED fixture 120Lm/W

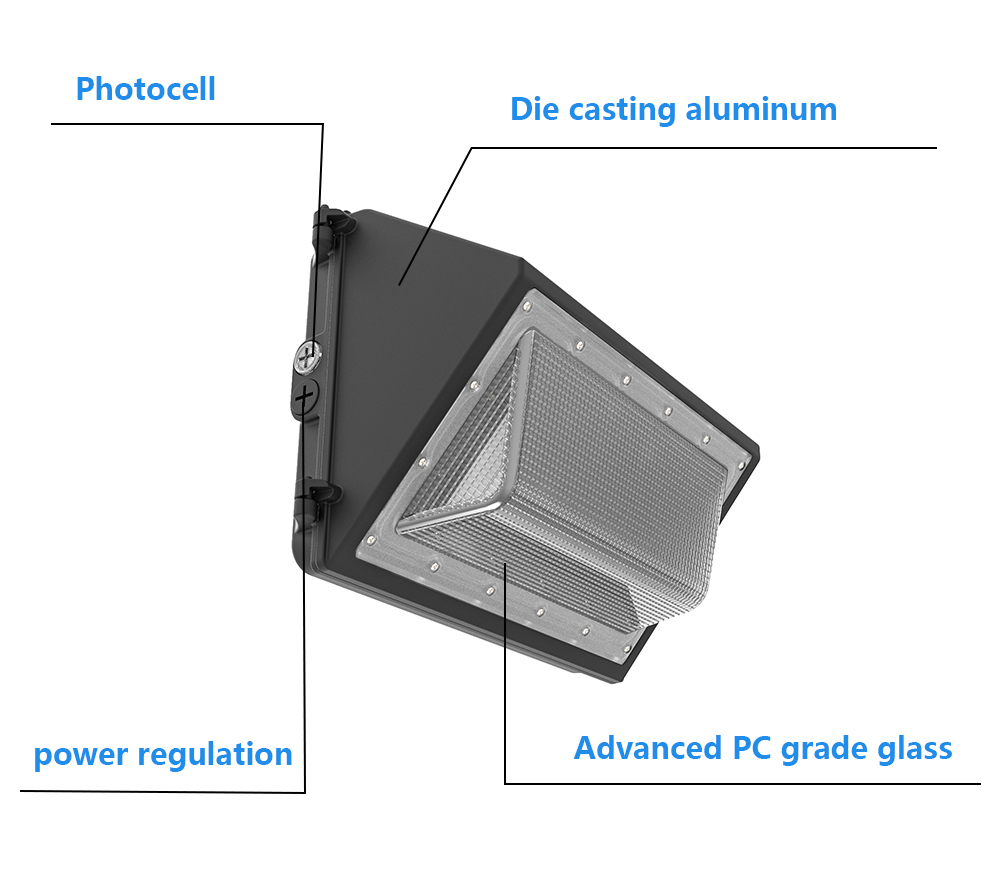

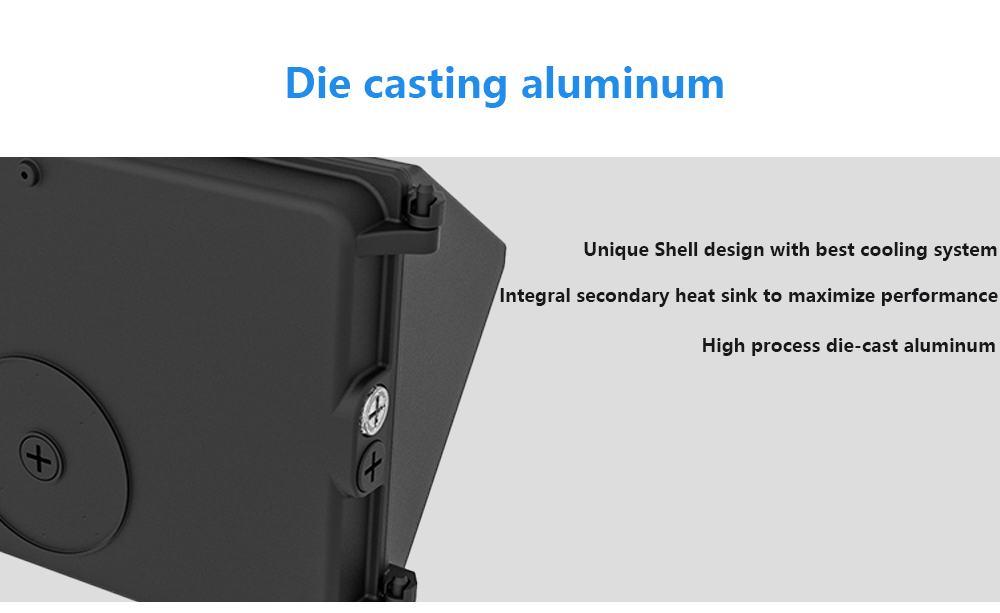

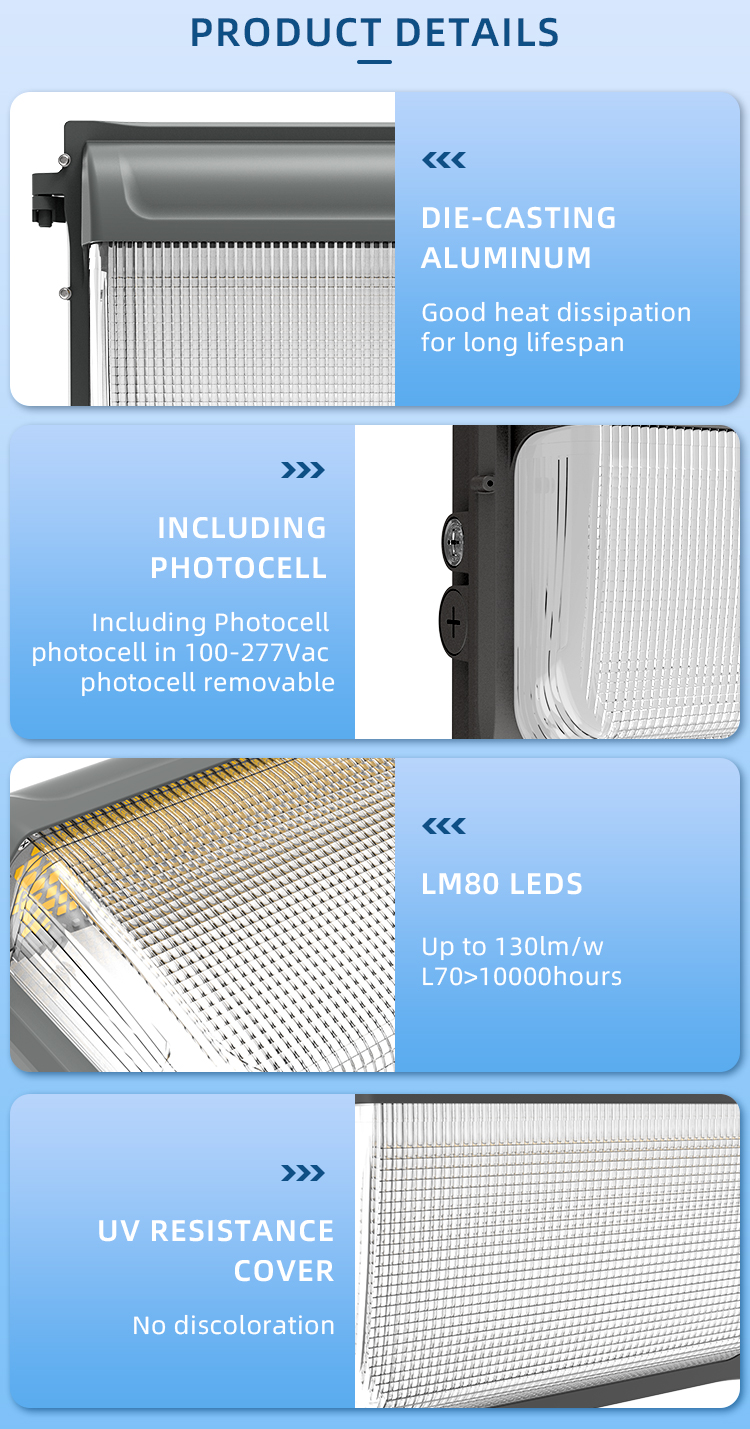

Heavy-duty cast aluminum housing

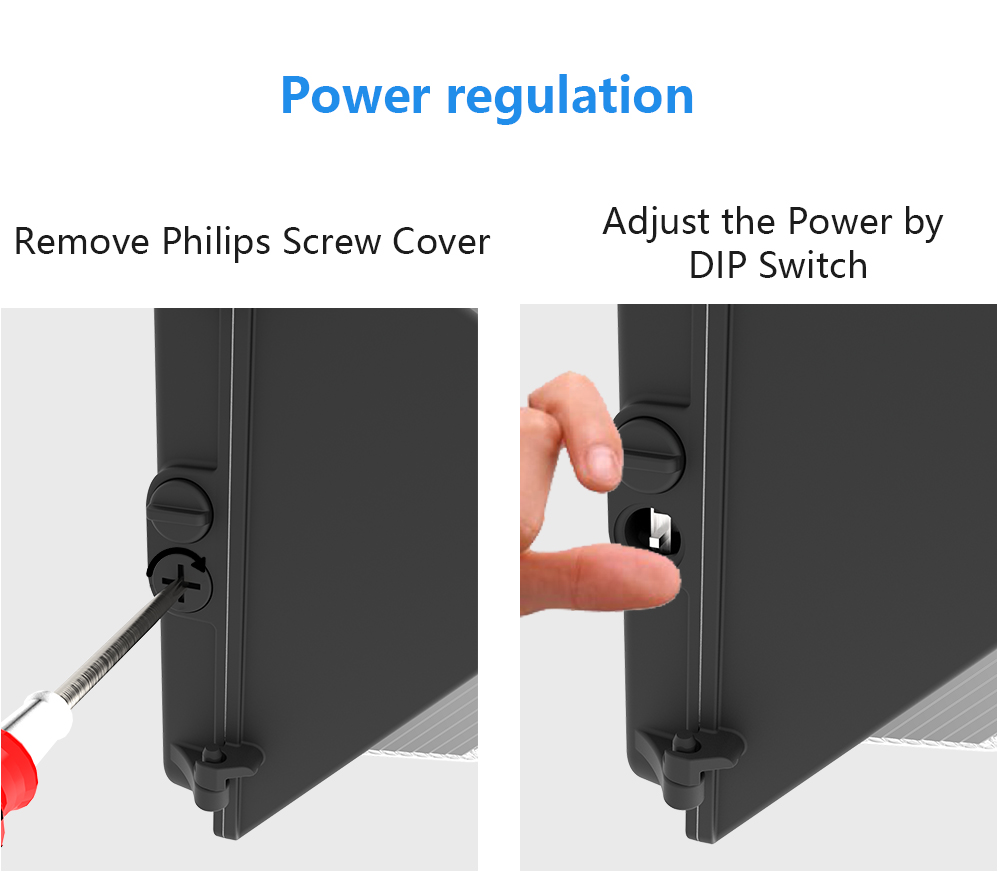

With power regulation function

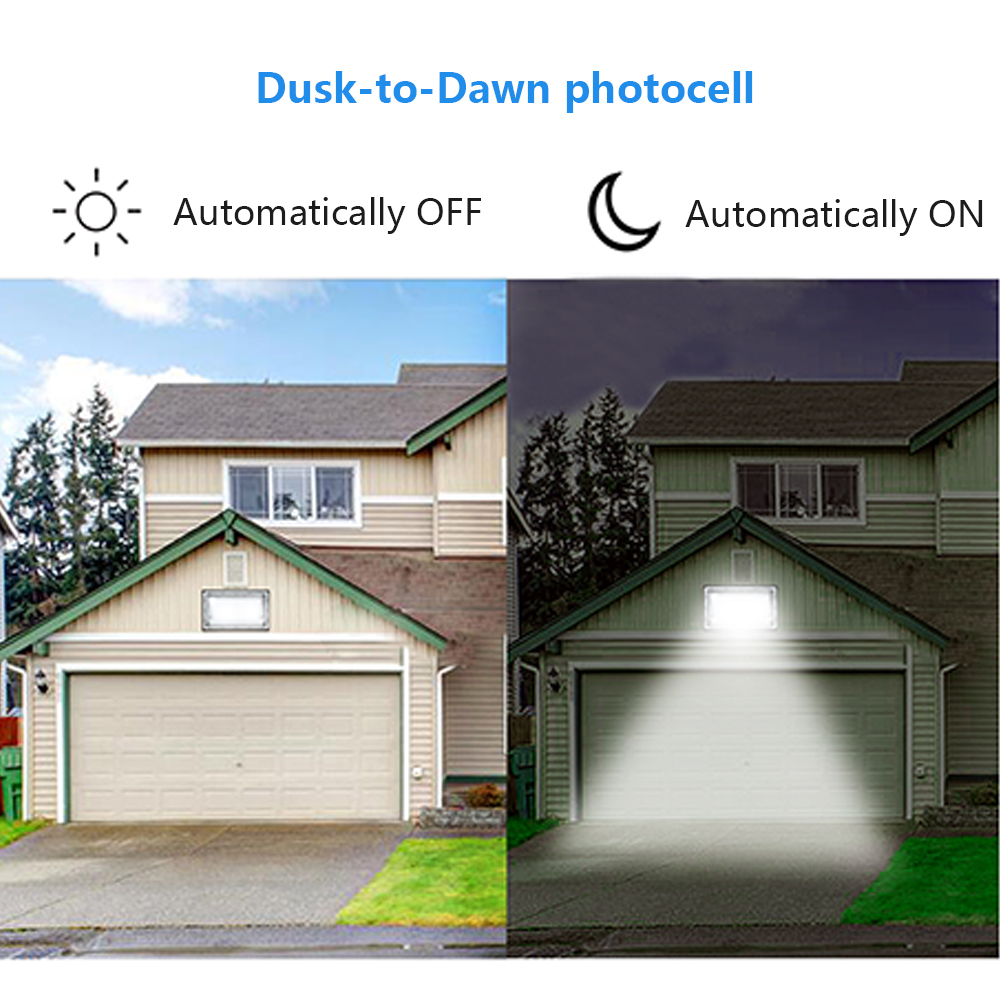

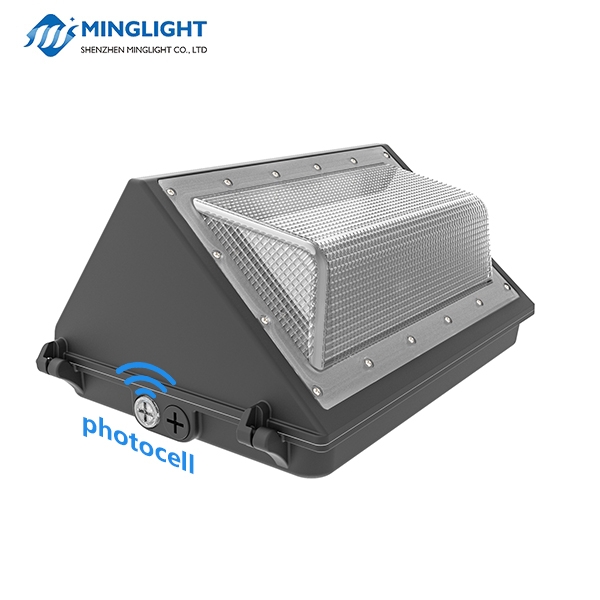

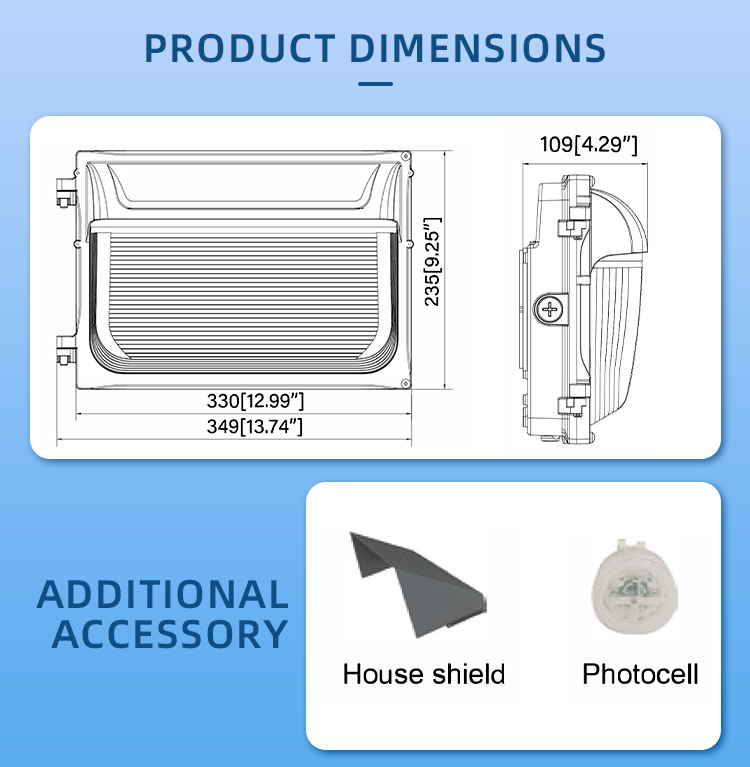

Photocell is available
Replcing 125W to 500W metal halide
DLC ETL Philips LED and5 years warranty

Specification

Product	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light
Brand Name	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight
Model No	ML-WPB-42W	ML-WPB-48W	ML-WPB-60WHV	ML-WPB-80W	ML-WPB-100W	ML-WPB-120W
Wattage	42W	48W	60W	80W	100W	120W
Input Voltage	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz	120-277Vac 50/60Hz
Lumen Efficiency	120LM/W	120LM/W	120LM/W	120LM/W	120LM/W	120LM/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
Power Efficiency	>85%	>85%	>85%	>85%	>85%	>85%
Lumen Output(+/-5%)	5040LM	5760LM	7200LM	9600LM	12000LM	14400LM
CRI	>70	>70	>70	>70	>70	>70
CCT	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K	3000K 4000K 5000K 6000K

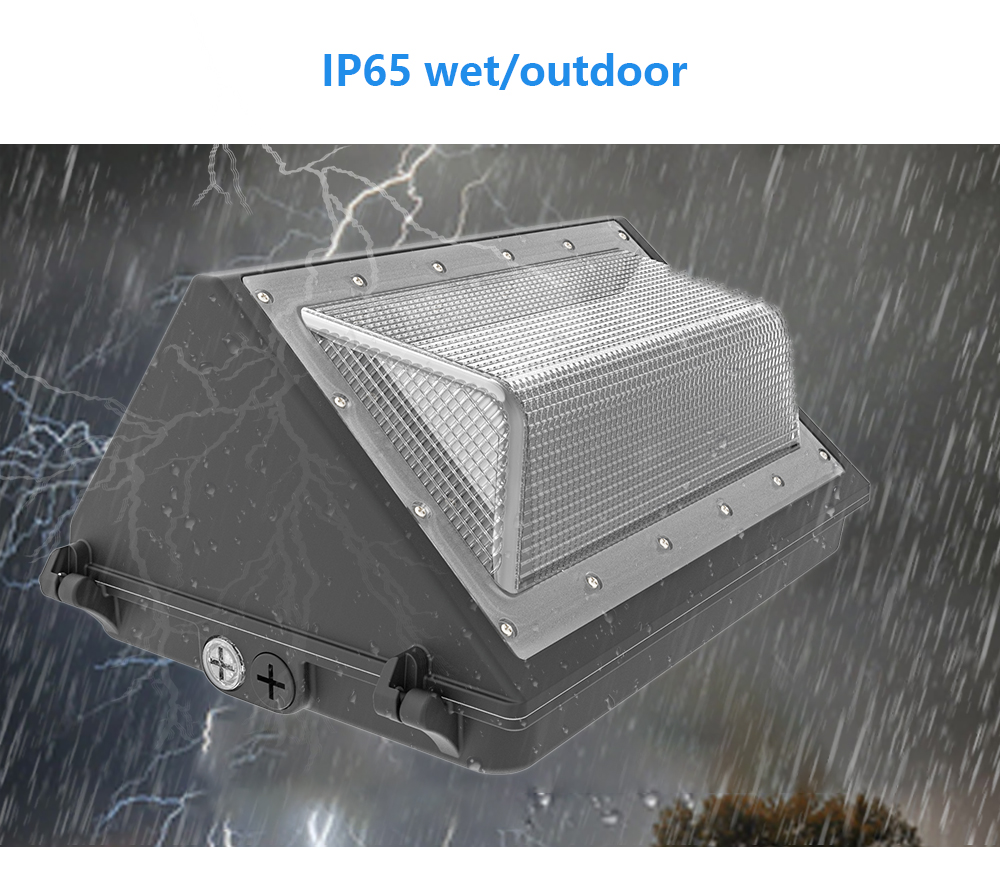

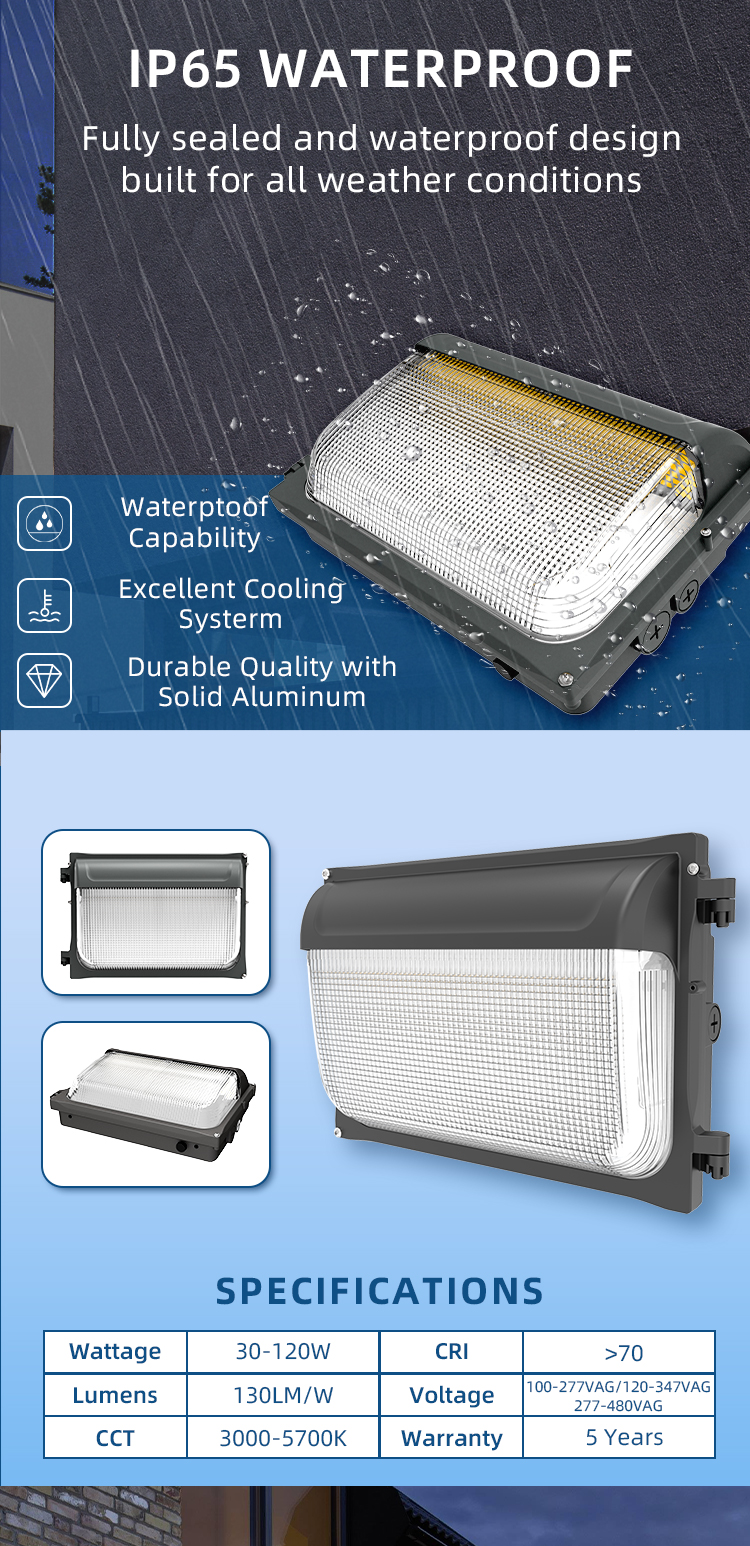

Rating	IP65	IP65	IP65	IP65	IP65	IP65
Driver	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight
Lighting Source	Lumileds	Lumileds	Lumileds	Lumileds	Lumileds	Lumileds
Working Temperature	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C	(-)25°C-(+)55 °C
Lamp Shell Color	Brown	Brown	Brown	Brown	Brown	Brown
Beam Angle	100°	100°	100°	100°	100°	100°
Working Lifetime	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs
Certification	DLC ETL	DLC ETL	DLC ETL	DLC ETL	DLC ETL	DLC ETL
Warranty	5 years	5 years	5 years	5 years	5 years	5 years

Packing

Model No	Wattage	PIECE	Carton Size(cm)	GW(kg)
ML-WPB-42W	42W	1pcs/CTN	392724.5	3.5
ML-WPB-48W	48W	1pcs/CTN	392724.5	3.5
ML-WPB-60W	60W	1pcs/CTN	392724.5	3.8
ML-WPB-80W	80W	1pcs/CTN	392724.5	3.8
ML-WPB-100W	100W	1pcs/CTN	392724.5	4.1
ML-WPB-120W	120W	1pcs/CTN	392724.5	6.3
ML-WPB-130W	130W	1pcs/CTN		6.45
