LED Parking Lot Light

< >

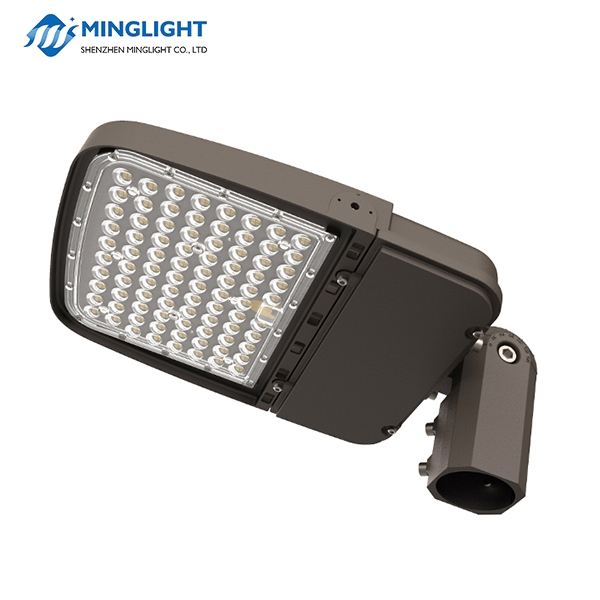

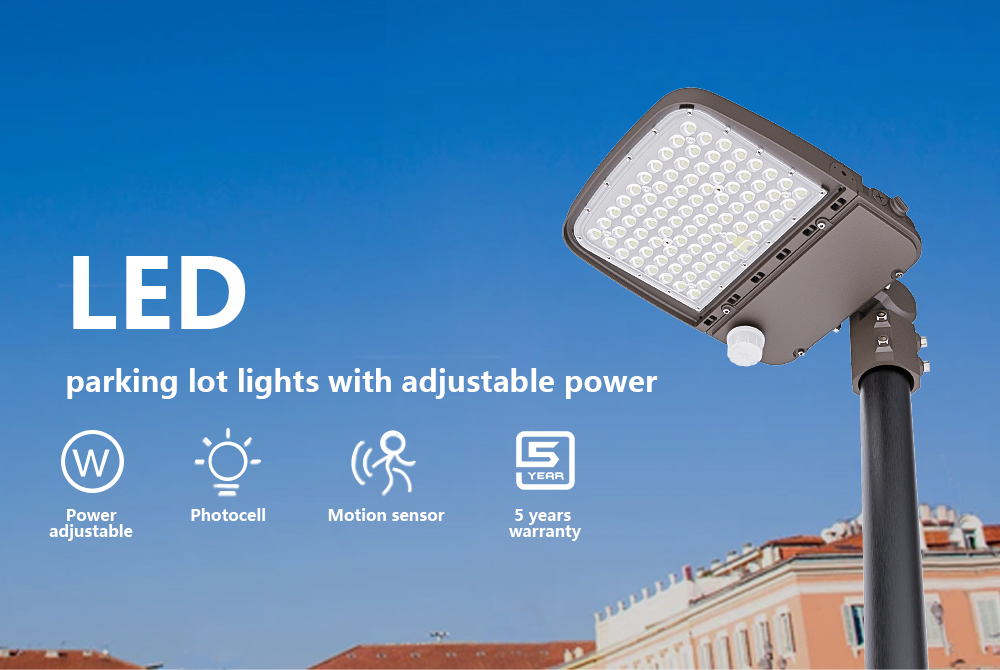

PLC Series LED Shoebox Light

50W-240W

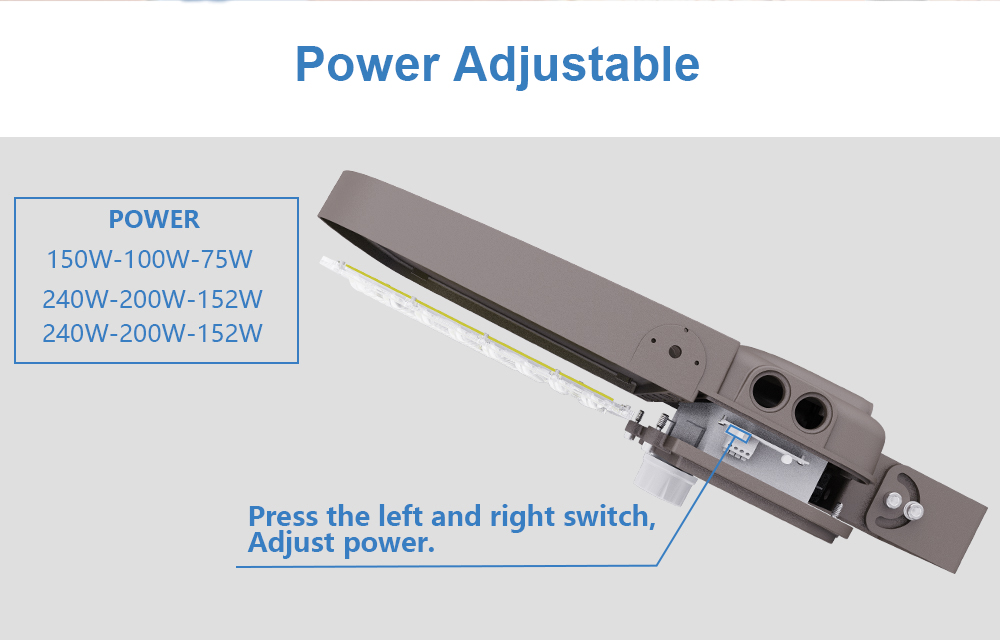

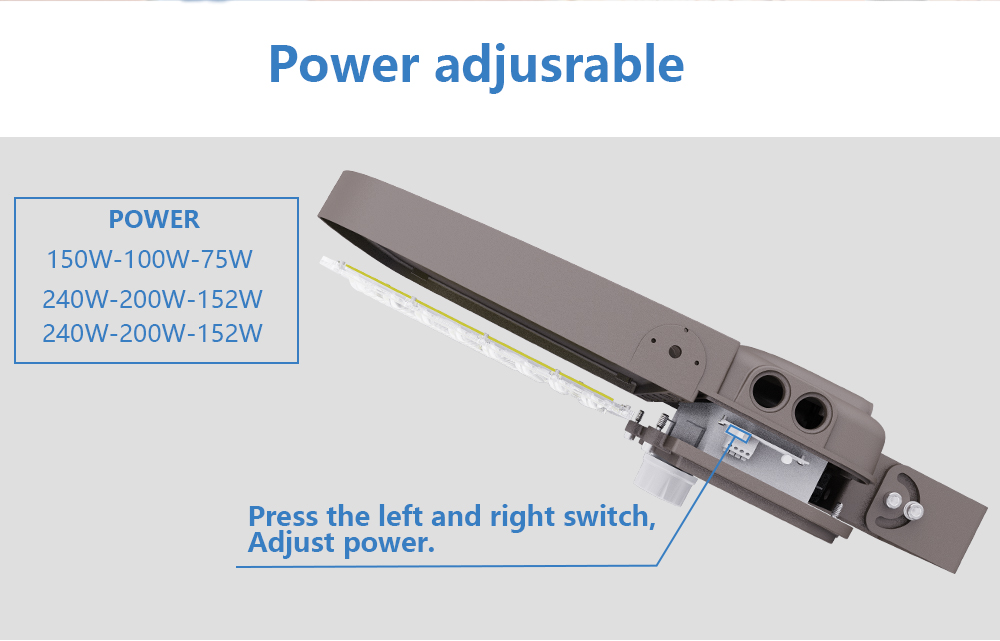

LUMILEDS & Wattage Switchable

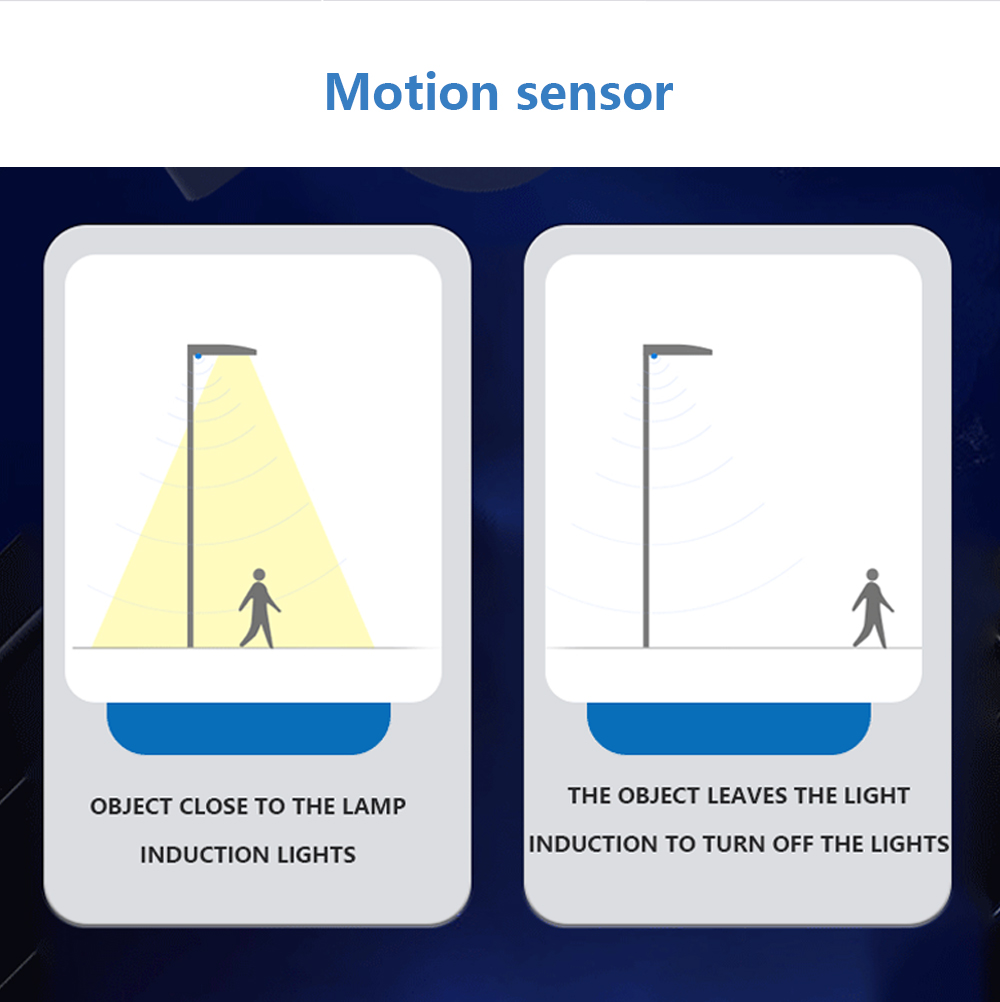

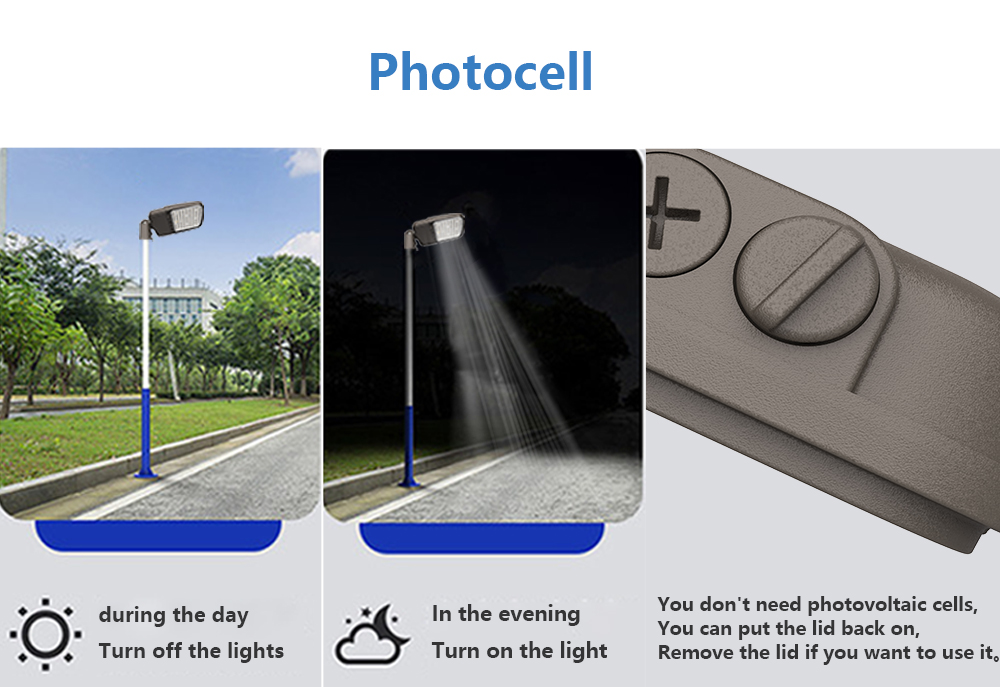

Smart sensor and Photocell available
High transmittance UV resistance,PC lens
Unique Shell design with best cooling system
0-10V dimming function for more energy saving
Integral secondary heat sink to maximize performance
Universal voltage 120/220/230/277/347/480V

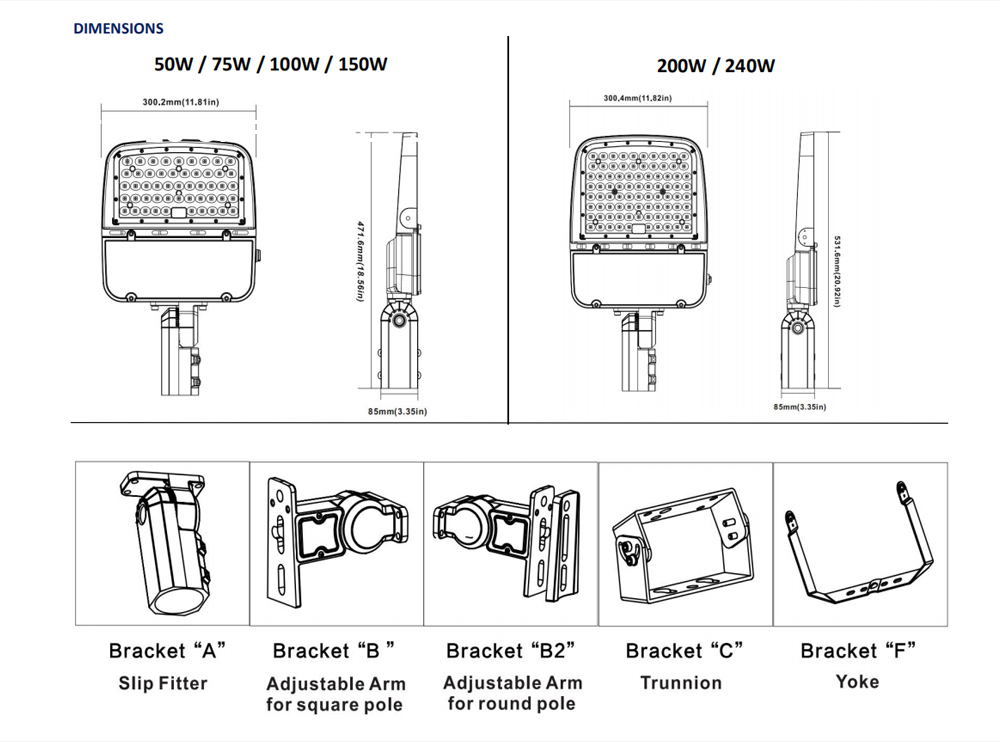

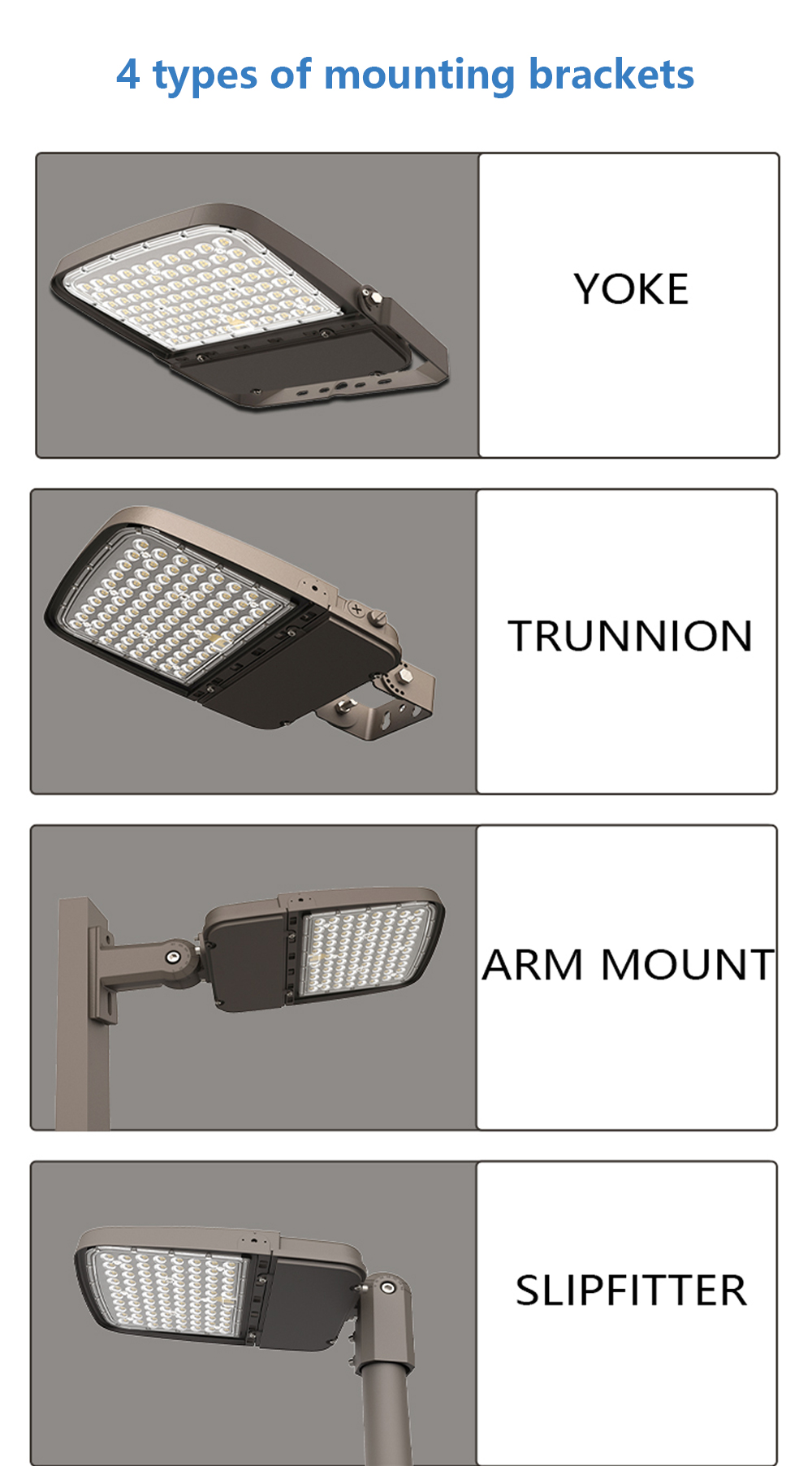

Universal Brackets for optional, including slipfitter, arm, trunnion & yoke.

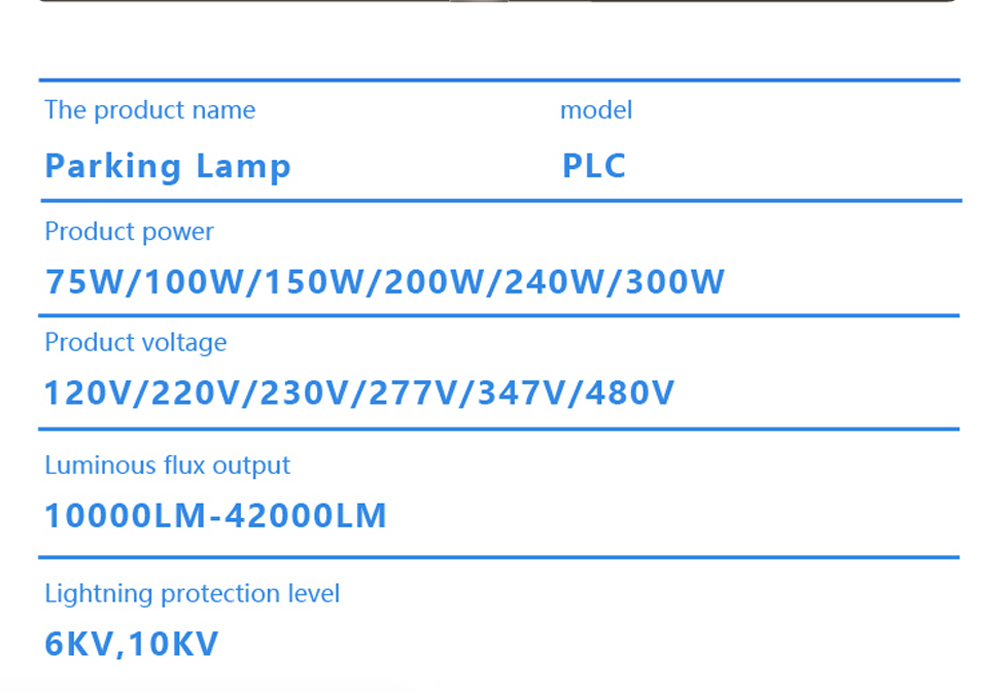

Specification

Brand Name	Minglight	Minglight	Minglight	Minglight	Minglight	Minglight
Model No	ML-PLC-50W	ML-PLC-75W	ML-PLC-100W	ML-PLC-150W	ML-PLC-200W	ML-PLC-240W
Wattage	50W	75W	10W	150W	200W	240W
Input Voltage	120-277Vac or 220-480Vac	120-277Vac or 220-480Vac	120-277Vac or 220-480Vac	120-277Vac or 220-480Vac	120-277Vac or 220-480Vac	120-277Vac or 220-480Vac
Lumen Efficiency	140LM/W	140LM/W	140LM/W	140LM/W	140LM/W	140LM/W
Power Factor (PF)	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9
Power Efficiency	>90%	>90%	>90%	>90%	>90%	>90%
Lumens Delivered(LM)	7000LM	10500LM	14000LM	21000LM	28000LM	33600LM
CRI	>70	>70	>70	>70	>70	>70
Rating	IP65	IP65	IP65	IP65	IP65	IP65
Driver	Inventronics	Inventronics	Inventronics	Inventronics	Inventronics	Inventronics
Dimmable	0-10v,DALI Optional	0-10v,DALI Optional	0-10v,DALI Optional	0-10v,DALI Optional	0-10v,DALI Optional	0-10v,DALI Optional
Operating Temperature	(-)40°C to (+)50 °C	(-)40°C to (+)50 °C	(-)40°C to (+)50 °C	(-)40°C to (+)50 °C	(-)40°C to (+)50 °C	(-)40°C to (+)50 °C
Working Lifetime	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs	50000hrs
Certification	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS	DLC ETL CE ROHS
Warranty	5 years	5 years	5 years	5 years	5 years	5 years
Weight(KGS)	3.5KGS	.3.5KGS	3.5KGS	3.5KGS	4.5KGS	4.5KGS

Packing

Itme	Carton Size(LWH)	Qty/CTN	N.W./CTN	G.W./GTN
ML-PLC-50W	433310.5CM	1 PC/CTN	3.5KGS	4KGS
ML-PLC-75W	433310.5CM	1 PC/CTN	3.5KGS	4KGS
ML-PLC-100W	433310.5CM	1 PC/CTN	3.5KGS	4KGS
ML-PLC-150W	433310.5CM	1 PC/CTN	3.5KGS	4KGS
ML-PLC-200W	433315CM	1 PC/CTN	4.5KGS	5KGS
ML-PLC-240W	433315CM	1 PC/CTN	4.5KGS	5KGS

Itme	Pallet Qty	20‘GP	40‘GP	40‘HQ
ML-PLC-50W	135PCS	1200PCS	2500PCS	3200PCS
ML-PLC-75W	135PCS	1200PCS	2500PCS	3200PCS
ML-PLC-100W	135PCS	1200PCS	2500PCS	3200PCS
ML-PLC-150W	135PCS	1200PCS	2500PCS	3200PCS
ML-PLC-200W	105PCS	900PCS	2000PCS	2500PCS
ML-PLC-240W	105PCS	900PCS	2000PCS	2500PCS
