LED High Bay Light

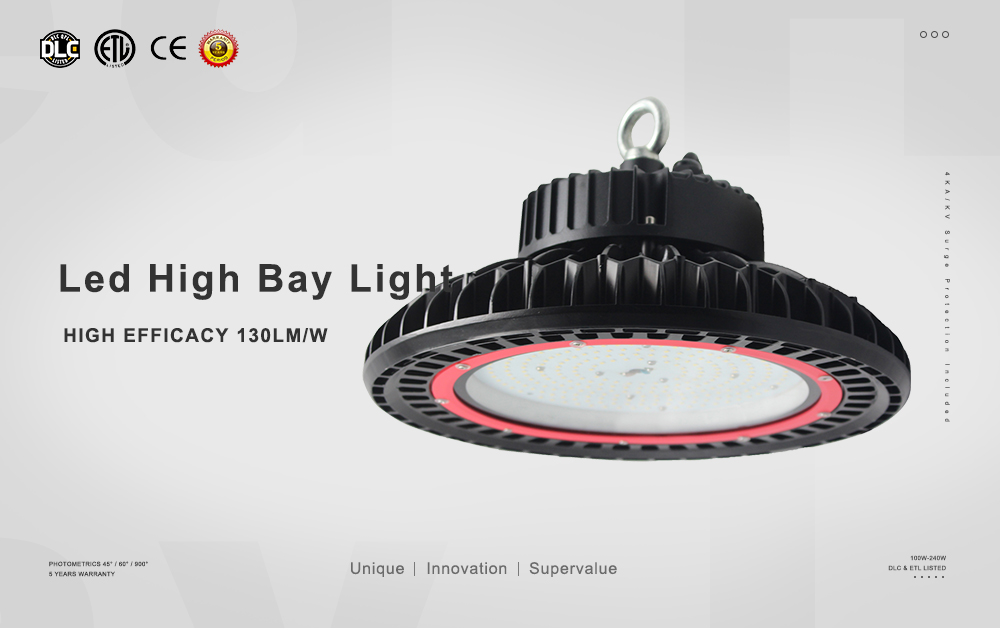

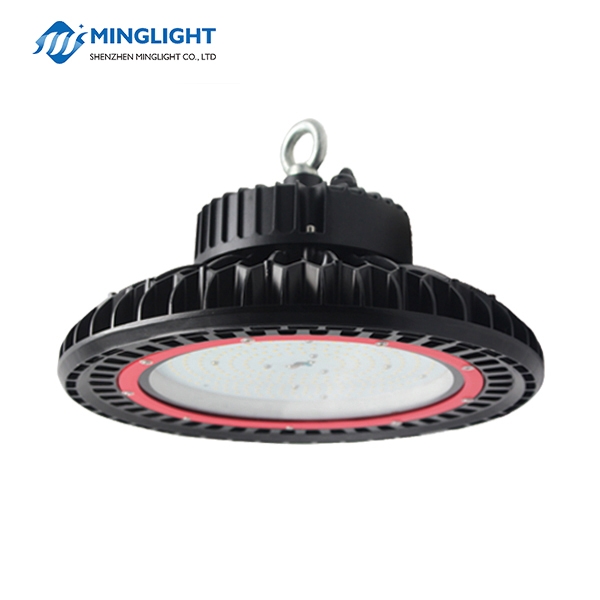

HB07U Series LED High Bay Light

100W-240W
High performance LED fixture 125Lm/W
3 multiple mounting options
Dali control,1-10v dimming
Replacing 400W to 1000W metal halide
DLC listed and 5 years warranty
    Specification

     Product High Bay Light High Bay Light High Bay Light High Bay Light
    Brand Name  Minglight  Minglight Minglight  Minglight
     Model No ML-HB07U-100W  ML-HB07U-150W   ML-HB07U-200W  ML-HB07U-240W
     Wattage 100W 150W   200W  240W
    Input Voltage  120-277Vac
    50/60Hz
    120-277Vac
    50/60Hz
    120-277Vac
    50/60Hz
    120-277Vac
    50/60Hz
    Lumen Efficiency  125LM/W 125LM/W 125LM/W 125LM/W
    Power Factor (PF)  >0.95  >0.95   >0.95   >0.95
    Power Efficiency  >90%   >90%   >90%   >90%
    Lumen Output(+/-5%)  12500LM 19000LM 25000LM 30000LM
    CRI  >70   >70   >70   >70
    CCT  3000K 4000K
    5000K 6000K
    3000K 4000K
    5000K 6000K
    3000K 4000K
    5000K 6000K
    3000K 4000K
    5000K 6000K
    Rating  IP65 IK07 IP65 IK07 IP65 IK07 IP65 IK07

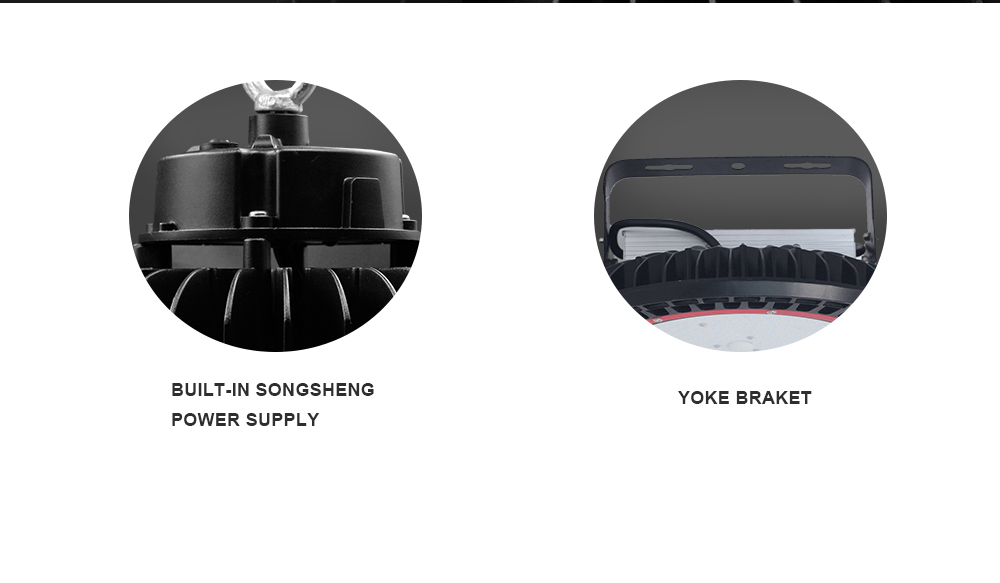

    Driver  Meanwell Meanwell Meanwell Meanwell

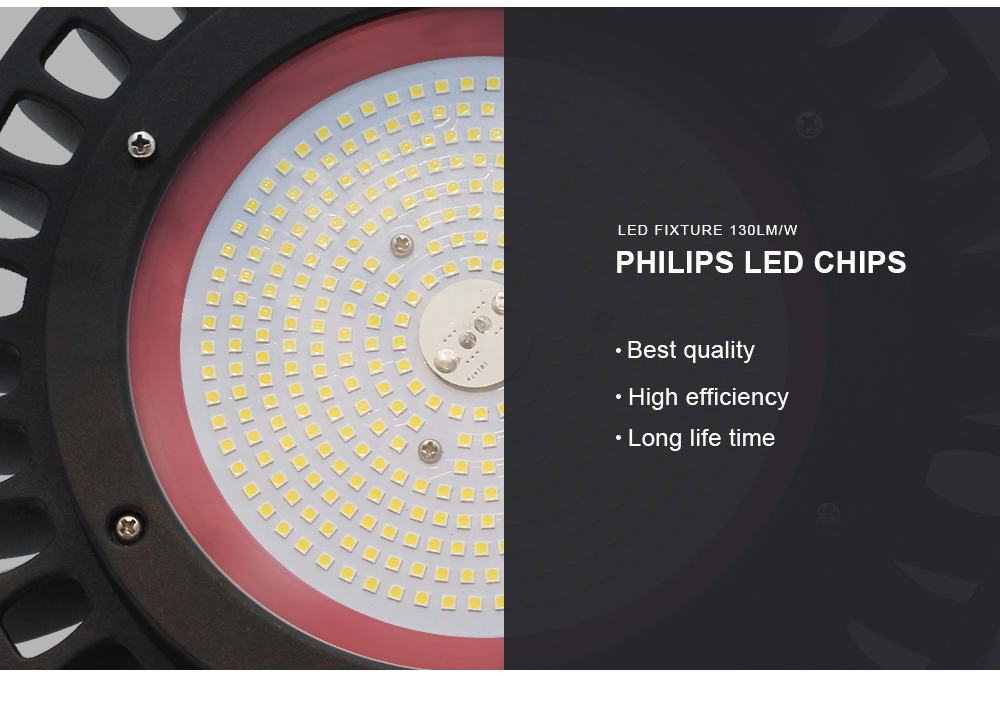

    Lighting Source   Lumileds   Lumileds   Lumileds  Lumileds
    Working Temperature  (-)25°C-(+)55 °C  (-)25°C-(+)55 °C  (-)25°C-(+)55 °C  (-)25°C-(+)55 °C
    Lamp Shell Color  Black Black Black Black
    Beam Angle 90° /120°  90° /120°  90° /120°  90° /120°
     Working Lifetime  50000hrs  50000hrs  50000hrs  50000hrs
    Certification    DLC ETL CE ROHS   DLC ETL CE ROHS     DLC ETL CE ROHS   DLC ETL CE ROHS
    Warranty  5 years  5 years  5 years  5 years


    Packing

     Model No Wattage PIECE Carton Size(cm) GW(kg)
    ML-HB07U-100W  100W 1pcs/CTN 37*37*22 (A)    37*37*20 (B/C) 6.8 (A)
    7.0 (B/C)
    ML-HB07U-150W  150W 1pcs/CTN 37*37*22 (A)    37*37*20 (B/C) 6.8 (A)
    7.0 (B/C)
    ML-HB07U-200W  200W 1pcs/CTN 46*46*24 (A)    46*46*24 (B/C) 8.8 (A)
    9.0 (B/C)
    ML-HB07U-240W  250W 1pcs/CTN 46*46*24 (A)    46*46*24 (B/C) 8.8 (A)
    9.0 (B/C)
