LED High Bay Light

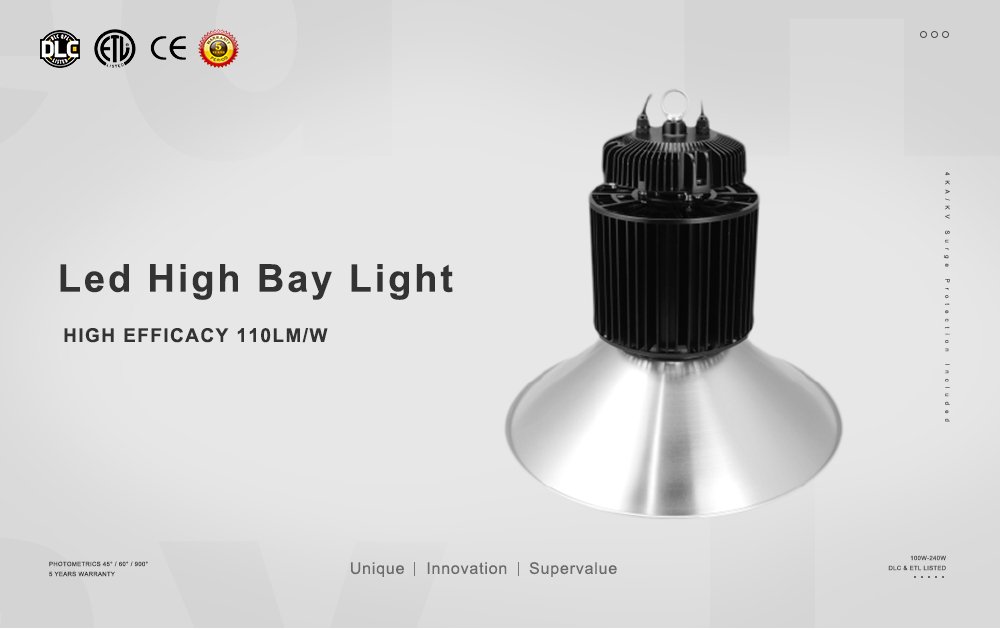

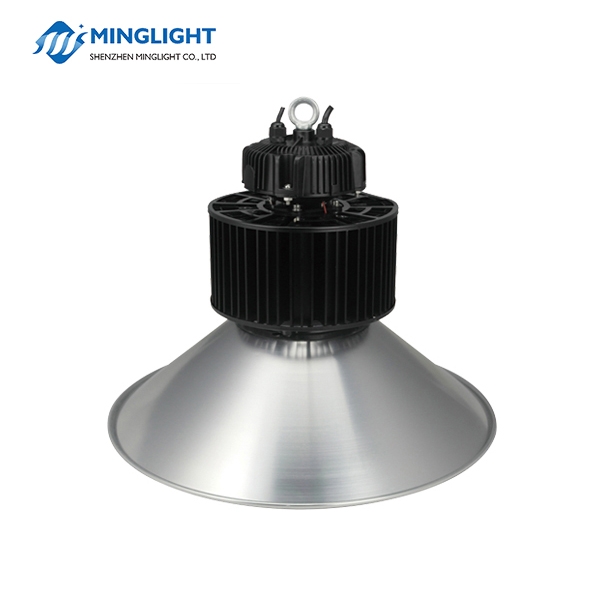

HB06 Series LED High Bay Light

100W-250W
High performance LED fixture 110Lm/W

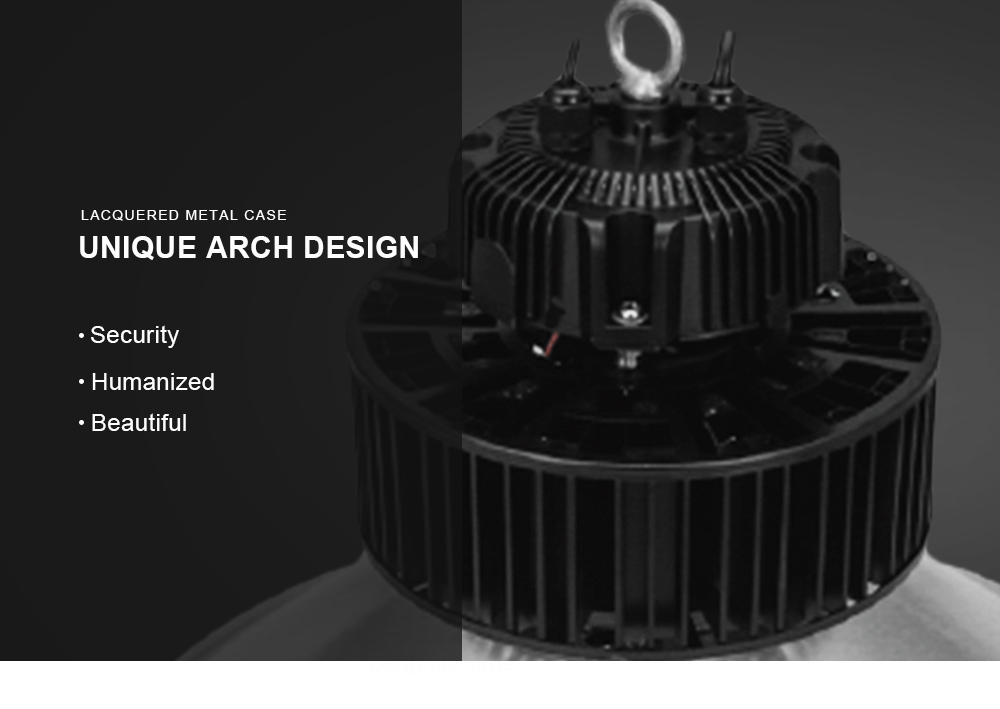

Itegrated and new fin-radiator
Better heat dissipation
Meanwall driver,1-10v dimming
Replacing 400W to 800W metal halide
GS SAA CE ROHS listed
    Specification

     Product High Bay Light High Bay Light High Bay Light High Bay Light High Bay Light
    Brand Name  Minglight  Minglight  Minglight Minglight  Minglight
     Model No ML-HB06-100W  ML-HB06-120W  ML-HB06-150W   ML-HB06-200W  ML-HB06-250W
     Wattage 100W 120W  150W   200W  250W
    Input Voltage  120-277Vac
    50/60Hz
    120-277Vac
    50/60Hz
    120-277Vac
    50/60Hz
    120-277Vac
    50/60Hz
    120-277Vac
    50/60Hz
    Lumen Efficiency  110LM/W 110LM/W 110LM/W 110LM/W 110LM/W
    Power Factor (PF)  >0.95  >0.95  >0.95   >0.95   >0.95
    Power Efficiency  >85%   >85%   >85%   >85%   >85%
    Lumen Output(+/-5%)  11000LM 13200LM 16500LM 22000LM 27500LM
    CRI  >70   >70   >70   >70   >70
    CCT  3000K 4000K
    5000K 6000K
    3000K 4000K
    5000K 6000K
    3000K 4000K
    5000K 6000K
    3000K 4000K
    5000K 6000K
    3000K 4000K
    5000K 6000K
    Rating  IP65 IK07 IP65 IK07 IP65 IK07 IP65 IK07 IP65 IK07
    Driver  Minglight  Minglight  Minglight  Minglight  Minglight

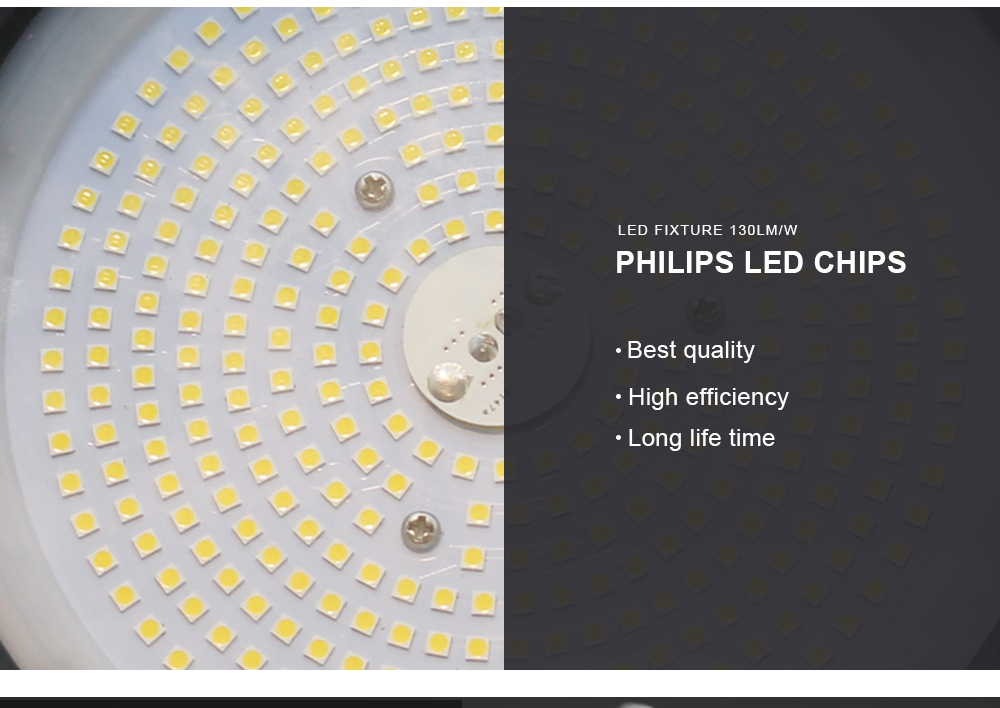

    Lighting Source   Lumileds   Lumileds   Lumileds   Lumileds  Lumileds
    Working Temperature  (-)25°C-(+)55 °C  (-)25°C-(+)55 °C  (-)25°C-(+)55 °C  (-)25°C-(+)55 °C  (-)25°C-(+)55 °C
    Lamp Shell Color  Black Black Black Black Black
    Beam Angle 45° /90° /120°  45° /90° /120°  45° /90° /120°  45° /90° /120°  45° /90° /120°
     Working Lifetime  50000hrs  50000hrs  50000hrs  50000hrs  50000hrs
    Certification    GS CE ROHS SAA   GS CE ROHS SAA    GS CE ROHS SAA   GS CE ROHS SAA   GS CE ROHS SAA
    Warranty  3 years  3 years  3 years  3 years  3 years


    Packing

     Model No Wattage PIECE Carton Size(cm) GW(kg)
    ML-HB06-100W  100W 4pcs/CTN 61*61*30 21.0
    ML-HB06-120W  120W 4pcs/CTN 61*61*30 22.0
    ML-HB06-150W  150W 4pcs/CTN 61*61*35 24.5
    ML-HB06-200W  200W 4pcs/CTN 61*61*38 33.0
    ML-HB06-250W  250W 4pcs/CTN 61*61*46 38.0
